Compact and readily available
Natural gas boiler hydronic heating
Compact, reliable condensing boilers for hydronic underfloor heating, installed internally or externally to suit the property.
Natural gas boiler heating
Natural gas boilers are a practical and cost-effective option for powering hydronic underfloor heating systems. They are compact, reliable and suitable for a wide range of applications, from residential homes through to larger commercial projects. In some areas, natural gas may also be one of the most readily available heating options.
Hydronic underfloor heating works by circulating heated water through pipes installed beneath the floor. This creates a consistent, comfortable radiant heat throughout the space. The boiler is responsible for heating the water before it is circulated through the system.
Installation
Gas boilers can be installed either externally or internally, depending on the property and available space. Internal installations require the boiler to be correctly flued to the outside.
The required gas, electrical and drainage services need to be available close to the proposed boiler location. Correct positioning of these services helps ensure the installation can be completed efficiently.
At Barefoot Underfloor Heating we coordinate with your builder, project manager and other trades to help ensure the required plumbing, electrical and floor preparation works are organised before installation.
Things to consider
- Internal or external boiler installation
- Suitable flue and ventilation requirements
- Availability and location of the natural gas supply
- Electrical power requirements
- Drainage requirements
- Local gas regulations and installation requirements
- Boiler size and capacity to suit the heating system
Immergas Intec V2 System External
The Immergas Intec V2 System External is a compact, high-efficiency gas boiler designed specifically for hydronic heating systems. Its weather-resistant external casing allows the boiler to be installed outside the home or building, making it a practical choice where indoor space is limited.
With condensing technology, a built-in pump and key system components, the Intec V2 provides an efficient and reliable heat source for hydronic underfloor heating. Available in 20 kW and 30 kW models, and its slim design helps keep the installation neat.
- Suitable for external installation
- Available in 20 kW and 30 kW models
- High-efficiency condensing technology
- Built-in Grundfos pump module
- Stainless steel heat exchanger
- Compact, slimline design
- Natural gas and LPG options
- Hâ‚‚-ready technology
Immergas Intec 20 and 30 kW Internal
The Immergas Intec 20 and 30 kW are compact, high-efficiency gas boilers designed for internal installation. They provide a reliable heat source for hydronic underfloor heating systems, making them a practical option for homes and smaller commercial applications.
The slimline design allows the boiler to be installed neatly inside a suitable cupboard or service area, while condensing technology helps improve energy efficiency by recovering heat that would otherwise be lost.
- 20 kW and 30 kW options
- Designed for internal installation
- High-efficiency condensing technology
- Compact, space-saving design
- Ideal for residential and smaller commercial projects

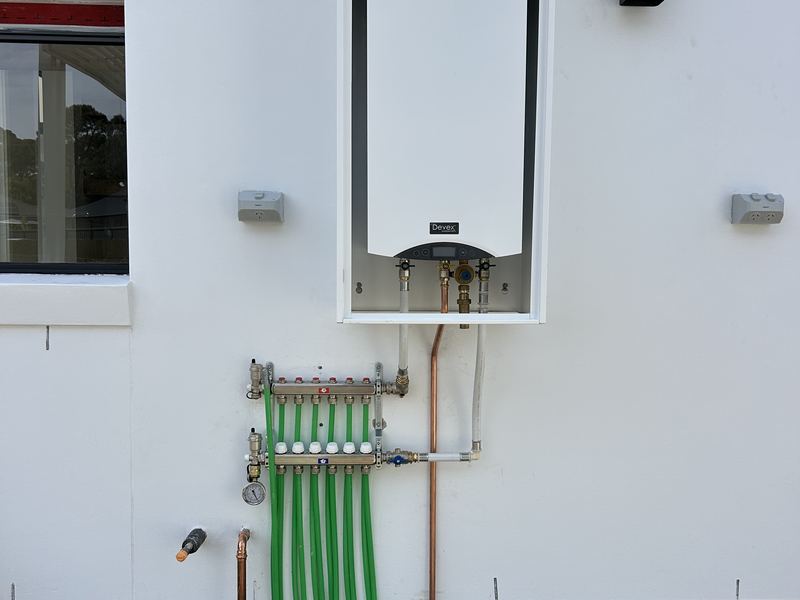

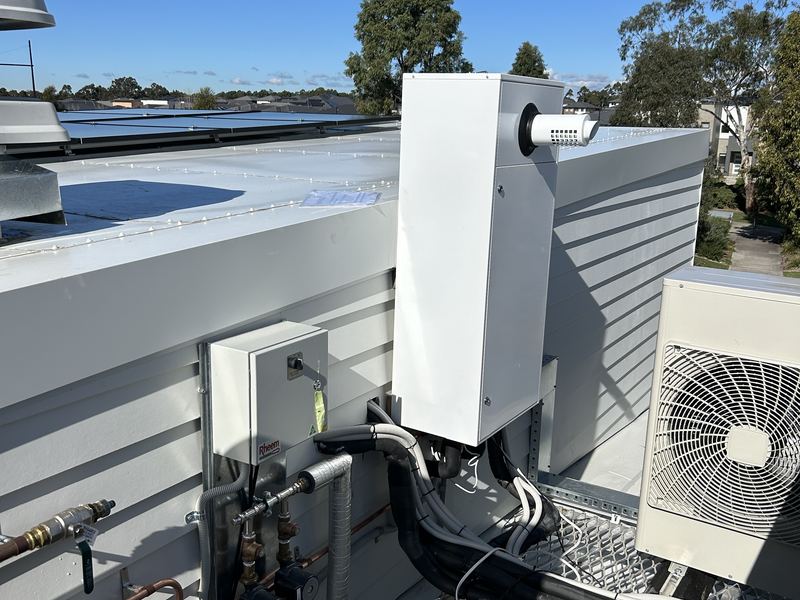

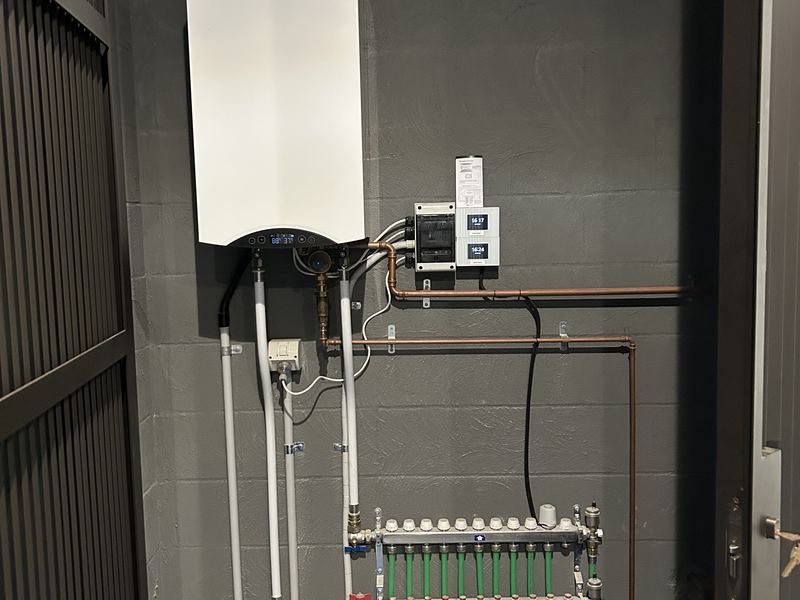

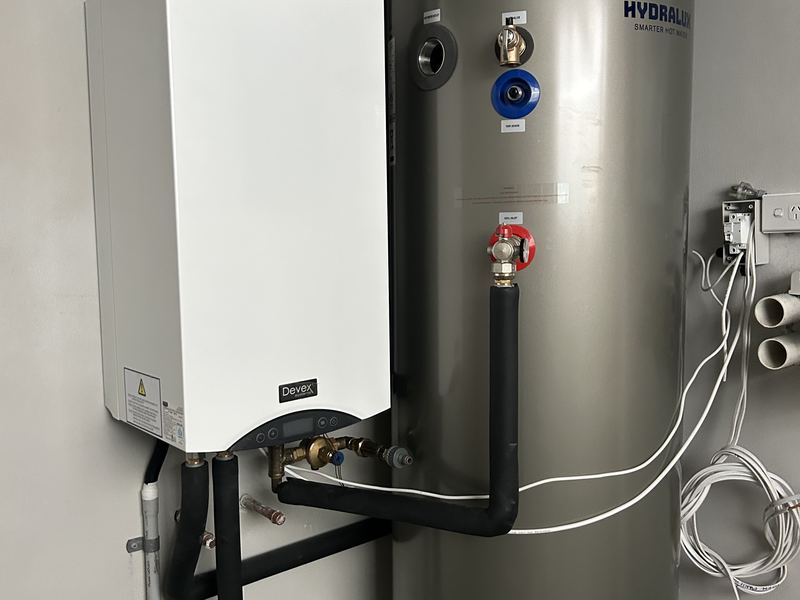

Installation photos
